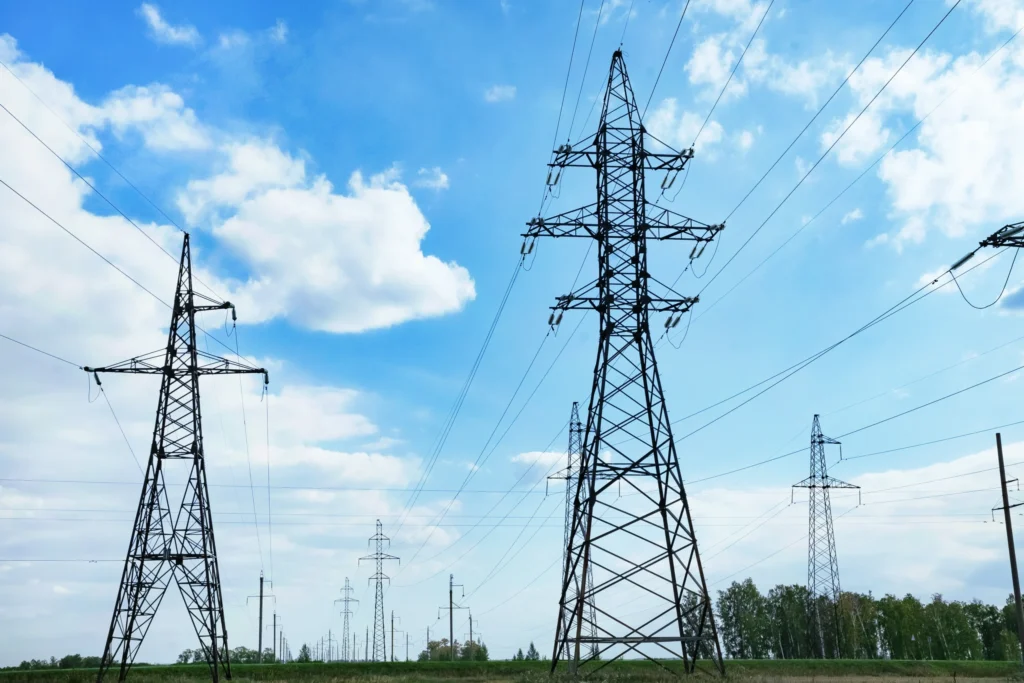

The reliability and efficiency of any High-Voltage Transmission Line System hinges on selecting the right conductors and overhead ground wires — engineered to withstand local terrain conditions while meeting international structural standards. Three core technologies make this possible: ACSR, AAAC, and OPGW.

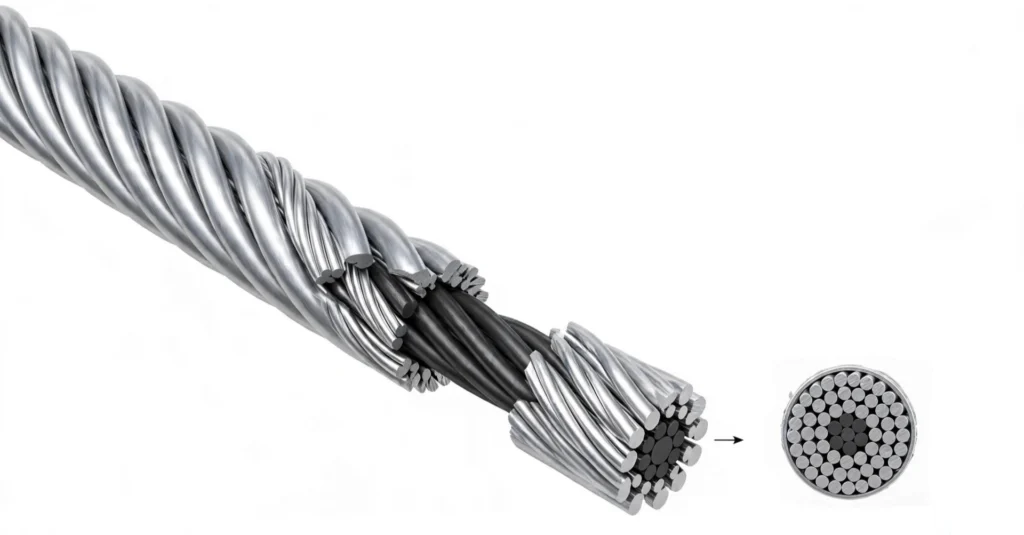

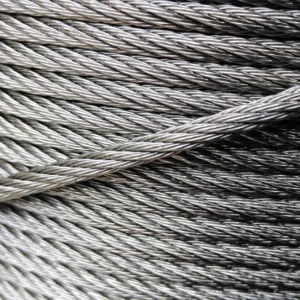

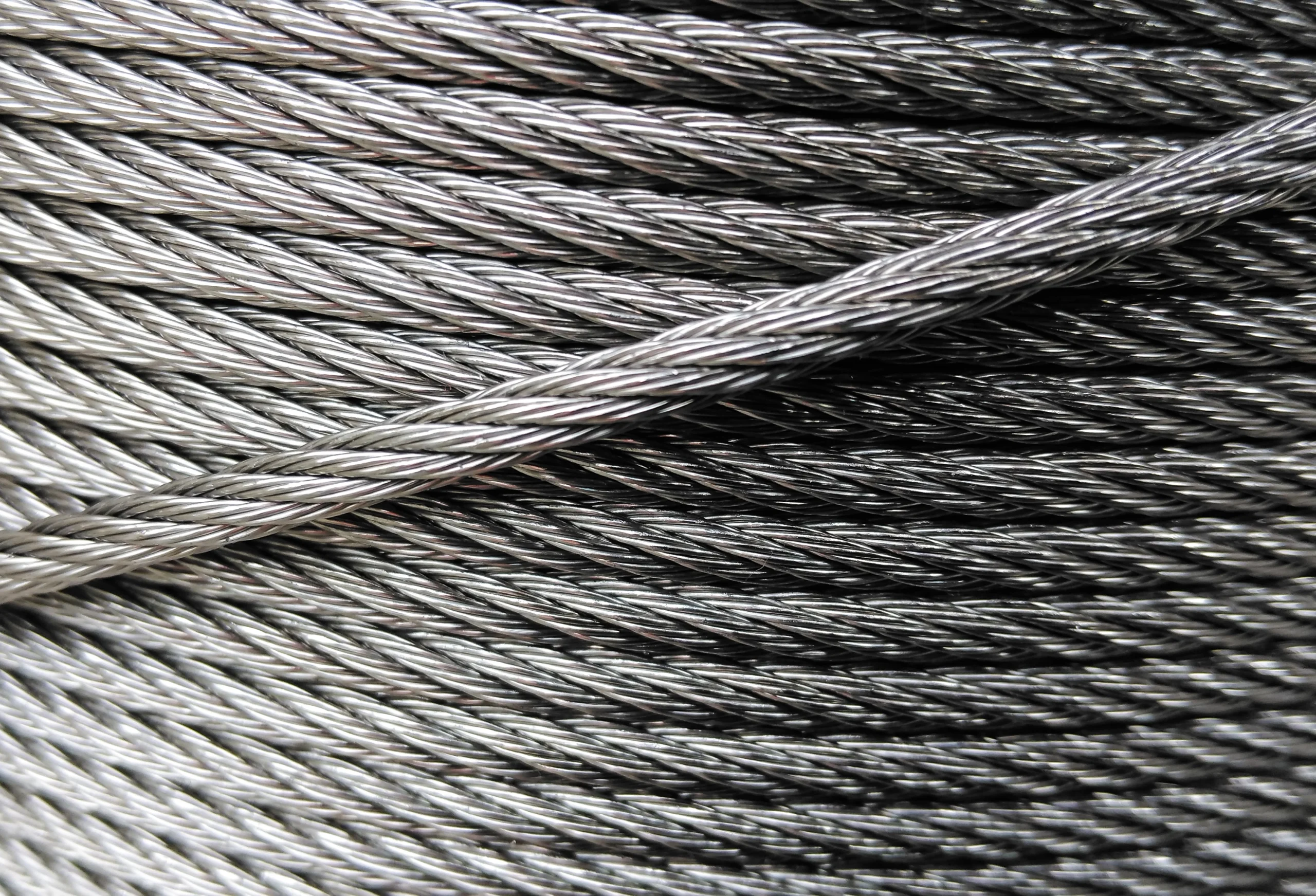

1. Aluminium Conductor Steel Reinforced (ACSR)
ACSR remains the industry-standard conductor for long-distance high-voltage transmission networks. Its design pairs a high-tensile steel core with strands of EC-grade aluminium — the steel core bears the mechanical load, while the aluminium layer carries the electrical current. This dual-material construction gives ACSR exceptional tensile strength, minimizes sag between transmission towers, and enables wider spans between pole structures without compromising performance.

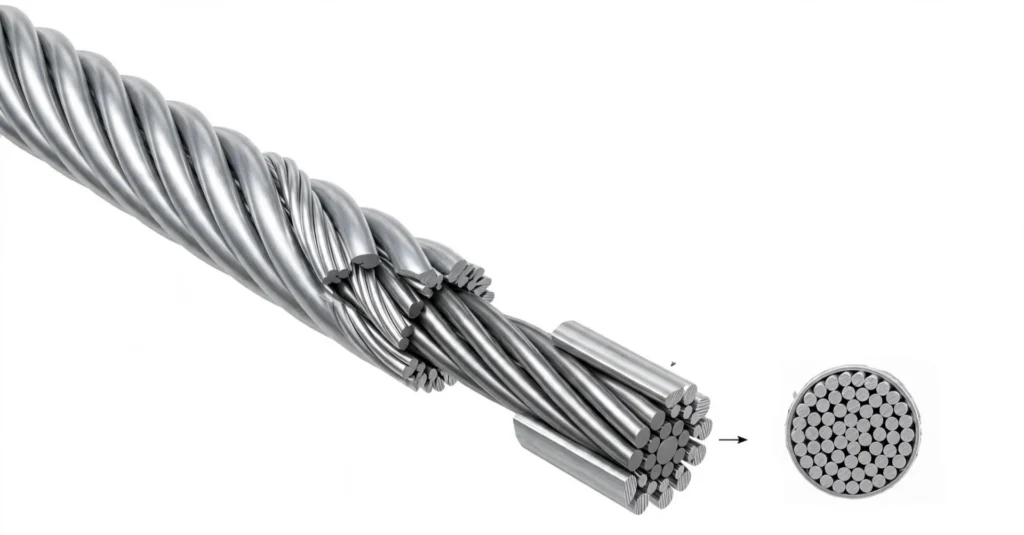

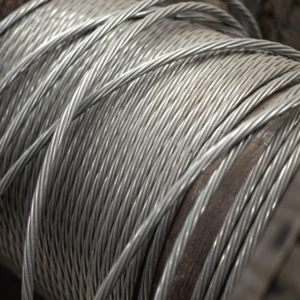

2. All Aluminium Alloy Conductor (AAAC)
Manufactured entirely from aluminium alloy (6201-grade, reinforced with magnesium and silicon) without a steel core, AAAC stands out for its superior resistance to corrosion from salt air and airborne chemicals — making it the preferred choice for transmission lines in coastal regions and industrial zones. Its lower electrical resistance also reduces power loss across the network, free from the magnetic interference associated with steel-cored conductors.

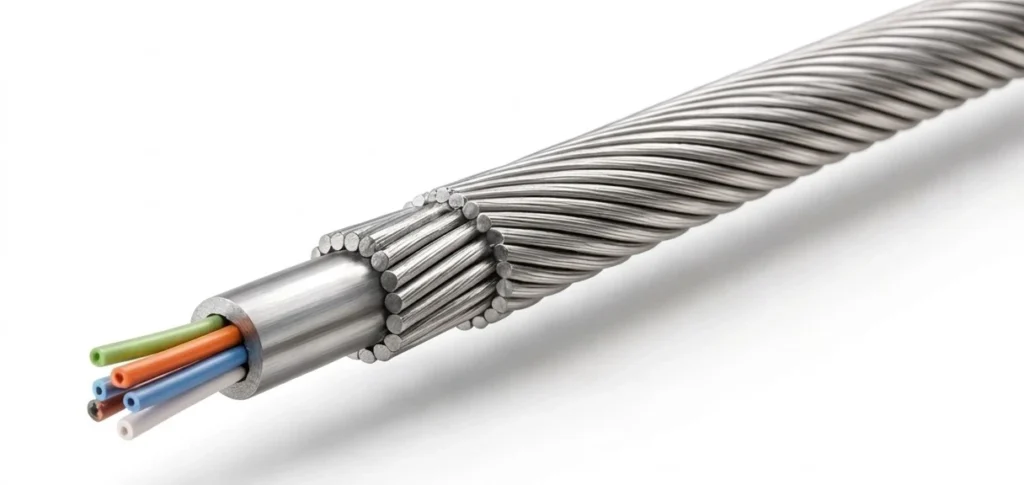

3. Lightning Protection & Network Communication (OPGW)
Installed at the highest point of each transmission tower, the Optical Ground Wire serves a dual purpose: shielding the conductors below by grounding lightning strikes and fault currents, while housing embedded optical fibers that enable real-time command and control data transmission. This dual functionality supports Smart Grid capabilities, delivering the highest levels of network stability and safety.
Strengthen the safety and reliability of your transmission line project. Connect with CHC Engineering’s team today to scope your project, define engineering specifications, and plan execution with a partner trusted for professional delivery.
